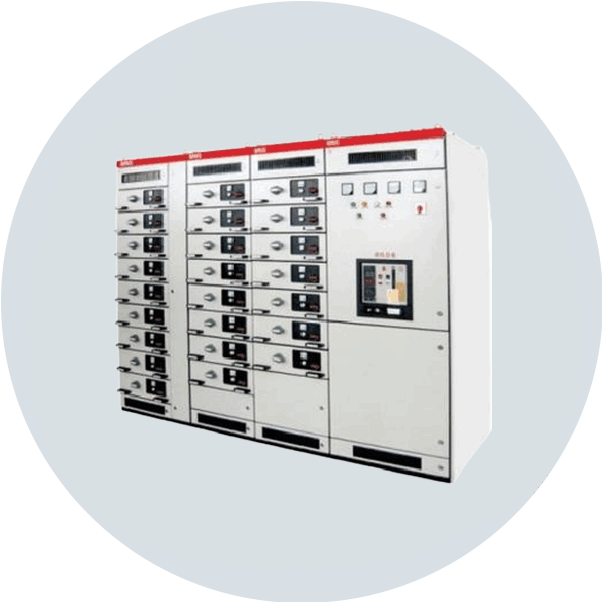

MNS Type AC Low Voltage Withdrawable Switchgear

Product Introduction

• The MNS low voltage withdrawable switchgear is a modular, standardized, and multifunctional low-voltage distribution cabinet assembled in the factory using standard components.
• It is suitable for AC 50–60 Hz systems with a rated working voltage of 380 V (660 V) and a maximum rated current up to 6300 A, in three-phase four-wire and three-phase five-wire power systems.
• The system is widely used in power plants, substations, petrochemical, metallurgical, transportation energy, light industry, textile industries, as well as residential communities and high-rise buildings. It is designed for low-voltage distribution and motor control systems requiring high reliability.

Application Scenarios

• Ambient Temperature:Maximum +40°C, minimum –5°C, with 24-hour average not exceeding +35°C
• Relative Humidity:Not exceeding 50% at +40°C; higher humidity allowed at lower temperatures (e.g., 90% at +20°C), considering possible condensation
• Installation:Indoor use, altitude not exceeding 2000 m
• Environment:Free from severe vibration, shock, or corrosive conditions
• Pollution Degree: Class 3
• Overvoltage Category:Category III
• Storage & Transportation Temperature:From –25°C to +55°C (up to +70°C for short periods not exceeding 24 hours)
• If these conditions are not met, special requirements should be agreed upon with the manufacturer.
