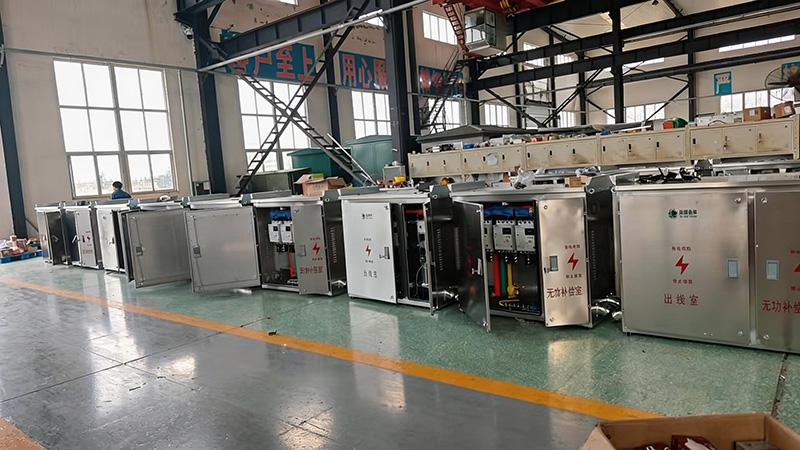

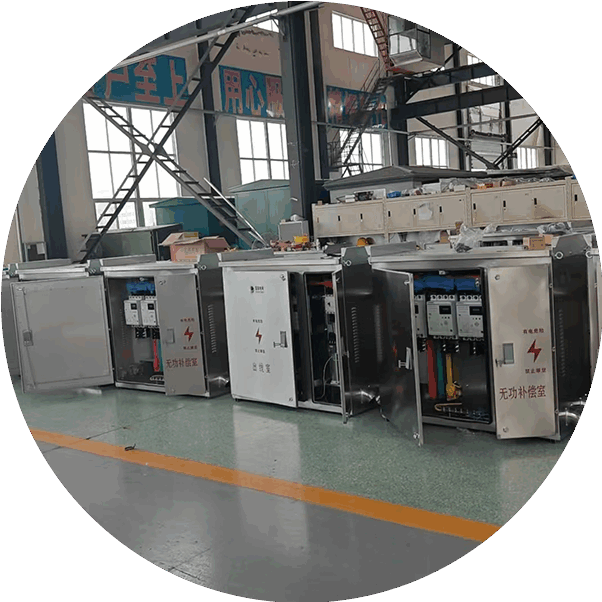

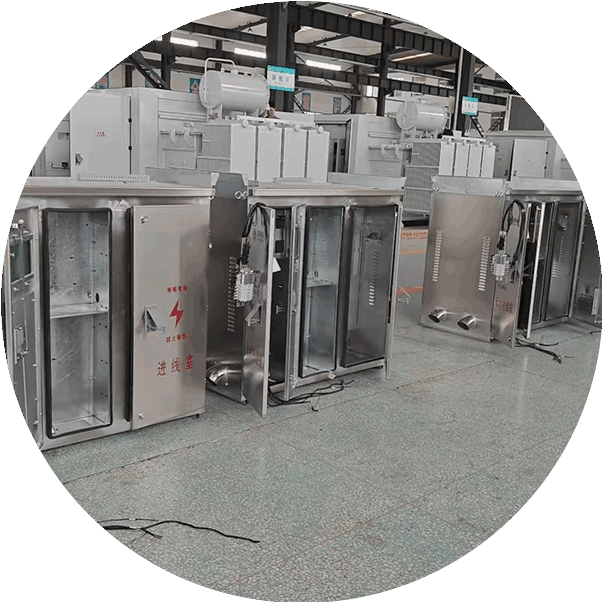

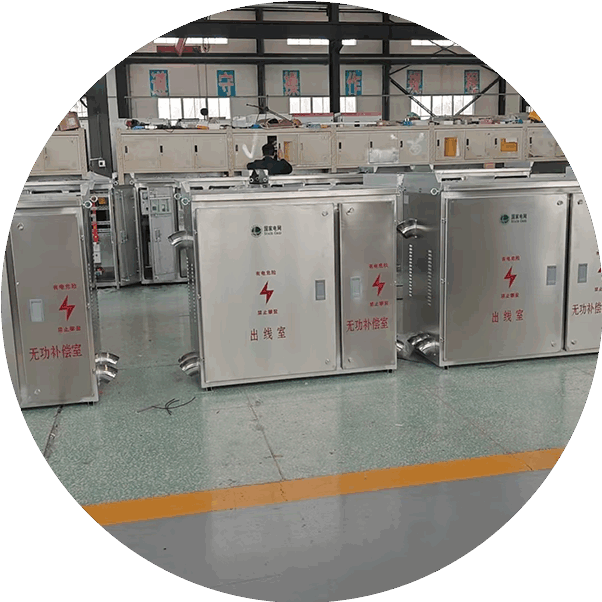

Intelligent Integrated Distribution Box (JP Cabinet)

Product Introduction

• The JP-type low-voltage integrated distribution and reactive power compensation cabinet is a new outdoor distribution cabinet designed with safety, economy, rationality, and reliability in mind. It is suitable for urban and rural grid upgrades, industrial and mining enterprises, street lighting, residential communities, and other 50Hz AC, 380V distribution systems. The cabinet integrates multiple functions including power distribution, control, protection, reactive power compensation, and energy metering, and can optionally include leakage protection according to user requirements.
• The JP series outdoor integrated cabinet features a novel and rational structure, high protection level, and convenient installation, commissioning, maintenance, and repair. It is suitable for 0.4kV voltage-level systems for power distribution, metering, protection, and automatic reactive power compensation.

Application Scenarios

• Rated Voltage: 400V
• Rated Frequency: 50Hz
• Number of Circuits: dual, three, or four circuits
• Compensation Method: collective, separated, phase-to-phase, or mixed compensation
• Compensation Control & Switching Type: electromechanical switch or combined switch
• Compatible Transformer Capacity (kVA): 50, 100, 200, 250, 315, 400, 500, 630
