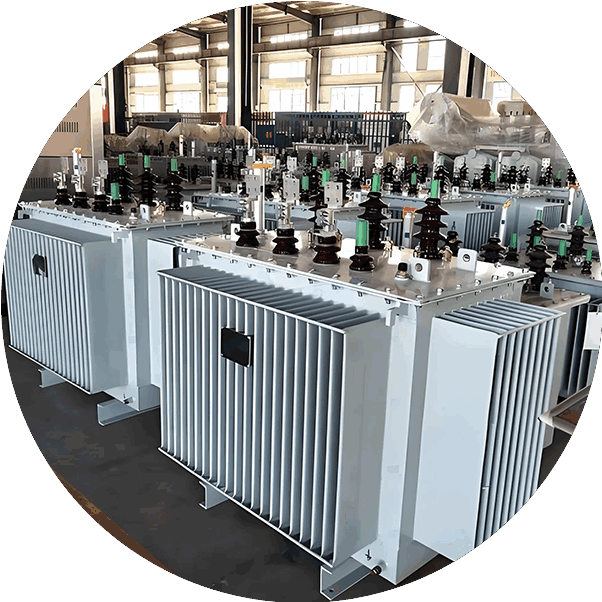

S-M(F) High Overload Capacity Distribution Transformer

1.High Overload Capability
2.Improved Power Supply Reliability
3.Good Operational Economy
4.Long Service Life
5.Customizable according to customer requirements.

Send Message

Product Introduction

  • The S-M(F) High Overload Capacity Distribution Transformer is specially designed to withstand short-term high load operation. It features strong overload capability and excellent operational stability. By optimizing the core structure, winding design, and insulation system, the transformer achieves improved heat dissipation and thermal stability, allowing it to operate safely and reliably under short-term heavy load conditions.
  • Compared with conventional distribution transformers, the S-M(F) High Overload Capacity Distribution Transformer can maintain a higher load factor while effectively preventing damage caused by temporary overload conditions. This improves power supply reliability and reduces operation and maintenance costs.
  • Without affecting the normal service life of the transformer, this series can withstand the following overload conditions:
  • 1.5 times the rated load for 6 hours
  • 1.75 times the rated load for 3 hours
  • 2 times the rated load for 1 hour
  • With enhanced thermal stability and structural strength, the transformer effectively prevents overheating or burnout under short-term heavy load conditions.

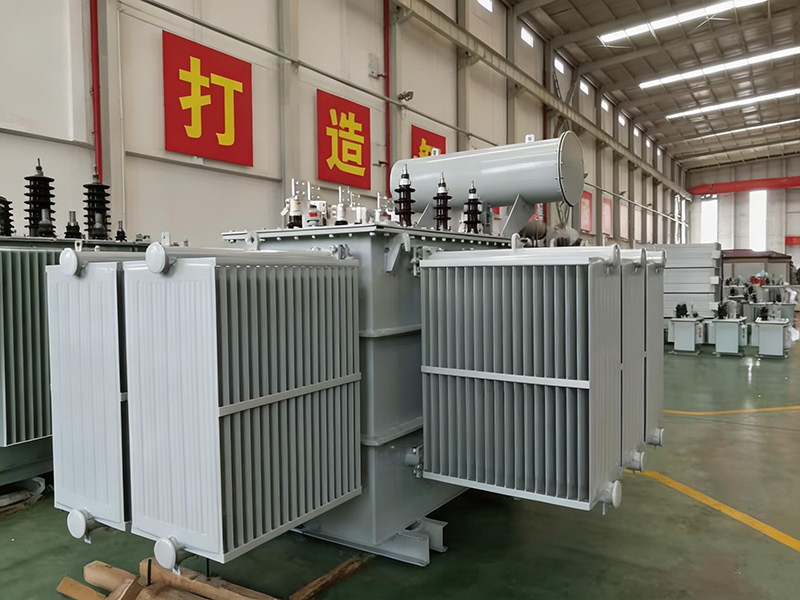

S-M(F)-10

Application Scenarios

  • The S-M(F) High Overload Capacity Distribution Transformer is particularly suitable for power distribution systems with large load fluctuations or seasonal electricity demand, including:
  • Rural power grids and rural grid upgrading projects
  • Areas with significant load fluctuations during agricultural seasons
  • Urban residential distribution networks
  • Industrial and mining enterprises and industrial parks
  • Power supply systems with large day-night load differences
  • In rural power networks, electricity demand often peaks during festivals or farming seasons, resulting in rapid short-term load increases. Conventional transformers may suffer severe overload or even burnout under such conditions.
  • The S-M(F) High Overload Capacity Distribution Transformer can withstand higher loads for short periods, ensuring stable and reliable power supply.

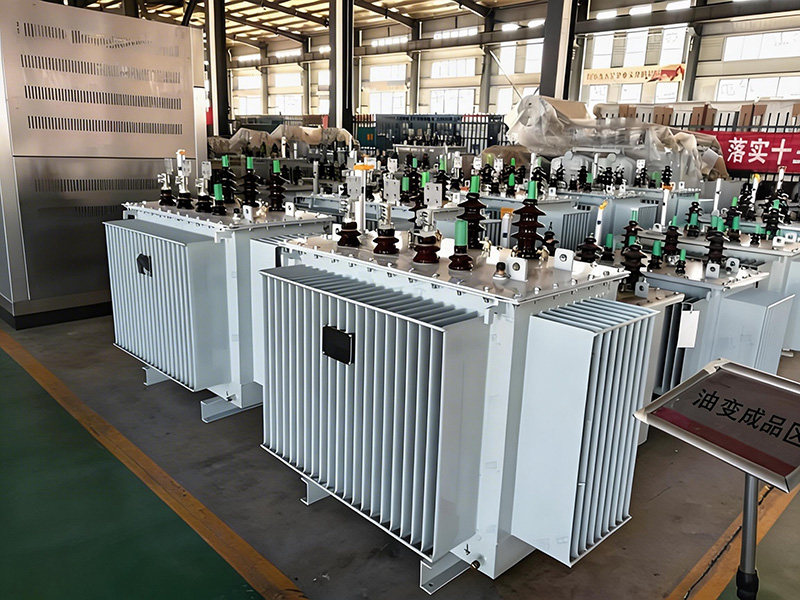

S-M(F)-12

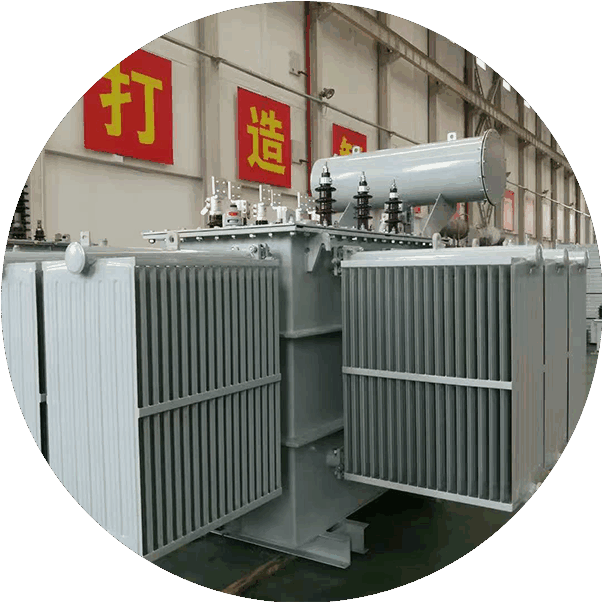

Structural Features

  • 1.High-Performance Core Structure
  • The transformer core is made of high-quality grain-oriented cold-rolled silicon steel sheets and manufactured using advanced lamination technology. This effectively reduces core losses and operating noise while improving overall efficiency.
  • 2.Reinforced Winding Design
  • Both high-voltage and low-voltage windings are made of high-purity copper conductors. The optimized winding structure enhances mechanical strength and short-circuit withstand capability.
  • 3.Optimized Insulation System
  • High-temperature-resistant insulation materials and an optimized insulation structure improve the thermal stability of the transformer, ensuring reliable operation under high-load conditions.

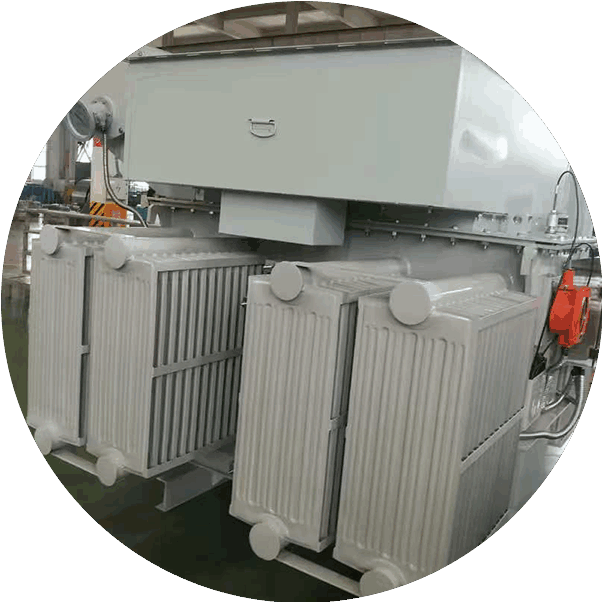

  • 4.Efficient Heat Dissipation Structure
  • The transformer tank adopts a fully sealed corrugated structure or enhanced cooling design, which improves heat dissipation efficiency and ensures proper temperature rise control even during heavy load operation.

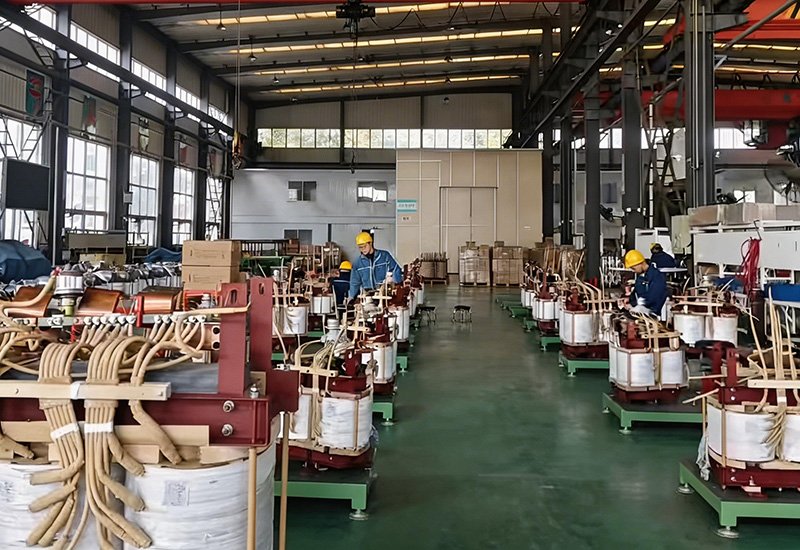

S-M(F)-11

Product Parameter

S11 Series 50kVA–200kVA Silicon Steel High Overload Distribution Transformer Specifications
Rated Capacity (kVA) Voltage Combination and Tap Range Vector Group No-Load Loss (kW) Load Loss (kW) No-Load Current (%) Short-Circuit Impedance (%)
High Voltage (kV) HV Tap Range Low Voltage (kV)
50 10
10.5
11
±5%
±2×2.5%
0.4 Dyn11
Yyno
0.13 0.910/0.870 1.3 4.0
100 0.2 1.580/1.500 1.1
200 0.34 2.730/2.600 1.0
Note: In the table, load loss values above the slash apply to the Dyn11 connection group, and those below the slash apply to the Yyn0 connection group.
Note:Transformers can be customized to operate under special service conditions according to user requirements.



S13 Series 50kVA–200kVA Silicon Steel High Overload Distribution Transformer Specifications
Rated Capacity (kVA) Voltage Combination and Tap Range Vector Group No-Load Loss (kW) Load Loss (kW) No-Load Current (%) Short-Circuit Impedance (%)
High Voltage (kV) HV Tap Range Low Voltage (kV)
50 10
10.5
11
±5%
±2×2.5%
0.4 Dyn11
Yyno
0.100 0.910/0.870 0.8 4.0
100 0.150 1.580/1.500 0.7
200 0.240 2.730/2.600 0.6
Note: In the table, load loss values above the slash apply to the Dyn11 connection group, and those below the slash apply to the Yyn0 connection group.
Note:Transformers can be customized to operate under special service conditions according to user requirements.



S(B)H15 Series 50kVA–200kVA Amorphous Alloy High Overload Distribution Transformer Specifications
Rated Capacity (kVA) Voltage Combination and Tap Range Vector Group No-Load Loss (kW) Load Loss (kW) No-Load Current (%) Short-Circuit Impedance (%)
High Voltage (kV) HV Tap Range Low Voltage (kV)
50 10
10.5
11
±5%
±2×2.5%
0.4 Dyn11 0.043 0.91 0.5 4.0
100 0.075 1.58 0.45
200 0.12 2.73 0.4
Note:Transformers can be customized to operate under special service conditions according to user requirements.
