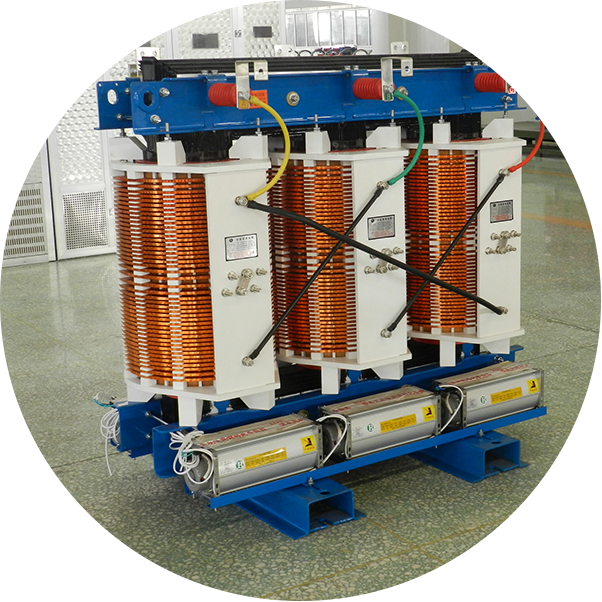

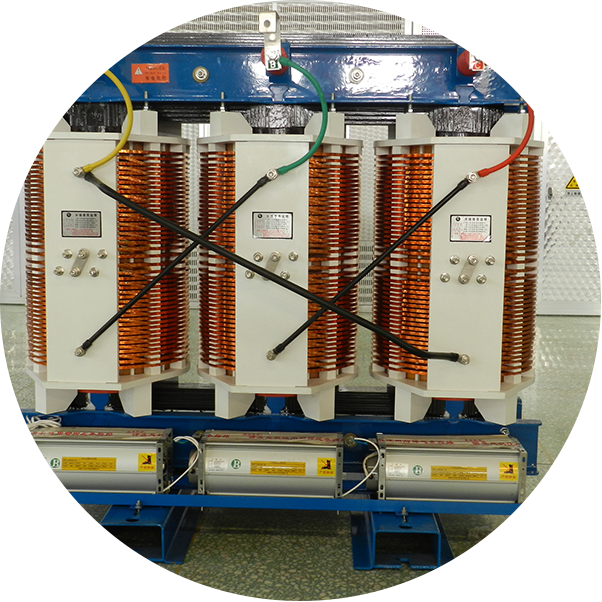

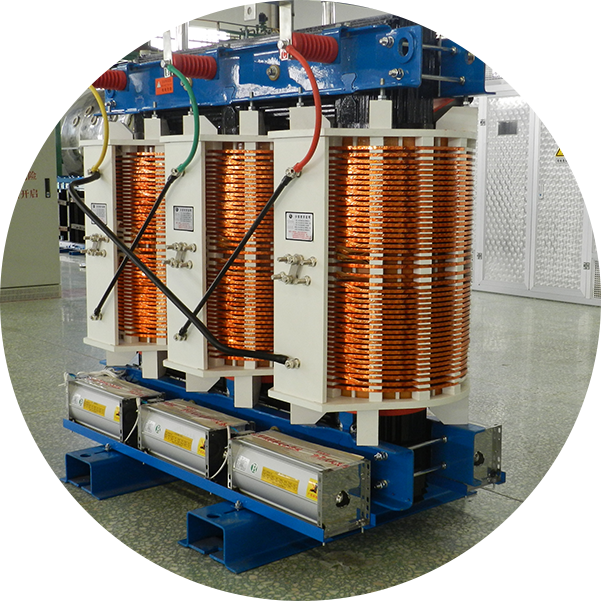

6-22kV SGB Series H-Class Insulation Dry-Type Transformer

1.H-Class insulation, excellent heat dissipation & long service life
2.Supports 120% continuous overload without forced cooling
3.High fire safety, no smoke under high-temperature conditions
4.Strong thermal shock resistance & reliable performance
5.Fully waterproof, moisture-proof & corrosion-resistant
6.Minimal partial discharge with optimized design
7.Customizable according to customer requirements.

Send Message

Facebook Twitter LinkedIn Pinterest Share

Product Introduction

The 10kV SGB series H-class insulation dry-type transformers are designed for environments with high fire safety requirements, large load fluctuations, and harsh, polluted, or humid conditions. T
ypical applications include airports, power plants, metallurgical operations, hospitals, high-rise buildings, shopping centers, densely populated areas, as well as specialized environments such as petrochemical plants, nuclear power stations, and nuclear submarines.

6kv

Application Scenarios

The 6–22kV SGB Series H-Class Insulation Dry-Type Transformer is widely used in power distribution systems requiring high safety, reliability, and thermal performance, such as industrial plants, power stations, commercial buildings, and public infrastructure.
With its excellent heat resistance and waterproof performance, it is particularly suitable for harsh environments including high-humidity areas, coastal regions, underground facilities, tunnels, and locations with high fire protection requirements. It is also ideal for applications with heavy loads and frequent load fluctuations.

35kv-2

Product Features

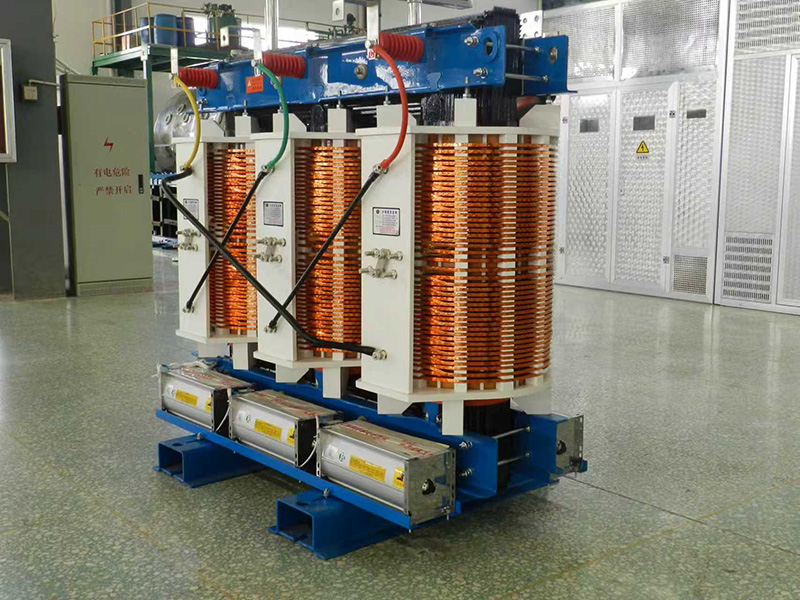

Unique porcelain insulation structure using MORA insulation cylinders and high-frequency ceramic pads, ensuring permanent shape stability.
High- and low-voltage windings use DuPont NOMEX insulation materials and undergo multiple VPI (Vacuum Pressure Impregnation) processes with special H-class insulating varnish and repeated curing. High-voltage windings feature mechanically robust, continuous winding structures with excellent heat dissipation.
Core made of high-quality, high-permeability silicon steel sheets stacked in a 45° full-slant configuration. Windings are elastically fixed to the core, ensuring low no-load losses and low noise. The core surface undergoes special processing. Clamping is done with tie rods and top/bottom clamps connected to the base, with windings secured via elastic pads to reduce vibration and noise.
Lead terminals are fixed on the top of the windings, tap connections in the middle, and low-voltage terminals use plate busbars with argon arc welding.

111

Product Parameter

Transformer Capacity (kVA)	High Voltage (kV)	High Voltage Tap Range	High Voltage Tap Range (%)	Rated Frequency (Hz)	Connection Group Designation	No-Load Loss (W)	Load Loss (W)	No-Load Loss (W)	Load Loss (W)	No-Load Loss (W)	Load Loss (W)	No-Load Loss (W)	Load Loss (W)	No-Load Current (%)	Noise Level (dB)	Noise Level (dB)	Track Gauge (mm)	Track Gauge (mm)		Enclosure
Transformer Capacity (kVA)	High Voltage (kV)	High Voltage Tap Range	High Voltage Tap Range (%)	Rated Frequency (Hz)	Connection Group Designation	SGB12		SGB13		SGB14		SGB18		No-Load Current (%)	Noise Level (dB)	Noise Level (dB)	Track Gauge (mm)	Enclosure	Weight (kg)	Overall Dimensions L×W×H (mm)	Weight (kg)
160	6 6.3 6.6 10 10.5 11	±5% ±2×2.5%	0.4	50	Dyn11 Yyn0	430	2280	385	2050	365	1915	310	1915	1.3	58	4	660X660	1180×720×1000	850	1600×1250×2200	250
200						495	2710	445	2440	420	2275	360	2275	1.1	58		660×660	1200×720×1050	930	1600×1250×2200	250
250						575	2960	515	2660	490	2485	415	2485	1.1	58		660×660	1250×720×1120	1080	1600×1250×2200	250
315						705	3730	635	3350	600	3125	510	3125	1	60		660X660	1280×720×1150	1250	1600×1250×2200	250
400						785	4280	705	3850	665	3590	570	3590	1	60		660×660	1300×720×1200	1450	1800×1450×2200	280
500						930	5230	835	4700	790	4390	670	4390	1	62		660X820	1380×880×1250	1750	1800×1450×2200	280
630						1070	6290	965	5660	910	5290	775	5290	0.85	62		660X820	1400×880×1300	2050	1800×1450×2200	280
630						1040	6400	935	5760	885	5365	750	5365	0.85	62	6	660X820	1480×880×1230	1900	1800×1450×2200	280
800						1210	7460	1090	6710	1035	6265	875	6265	0.85	64		660X820	1550×880×1300	2300	2000×1500×2200	350
1000						1410	8760	1270	7880	1205	7315	1020	7315	0.85	64		820×820	1620×880×1360	2750	2000×1500×2200	350
1250						1670	10300	1500	9330	1420	8720	1205	8720	0.85	65		820×820	1680×880×1460	3150	2000×1500×2200	350
1600						1960	12500	1760	11300	1665	10555	1415	10555	0.85	66		070×1070	1720×1130×1560	3700	2200×1600×2200	380
2000						2440	15500	2190	14000	2075	13005	1760	13005	0.7	66		070×1070	1760×1130×1680	4300	2200×1600×2200	380
2500						2880	18400	2590	16600	2450	15445	2080	15445	0.7	71		1070×1070	1840×1130×1780	5100	2200×1600×2200	380
Note：Transformers can be customized to operate under special service conditions according to user requirements.
